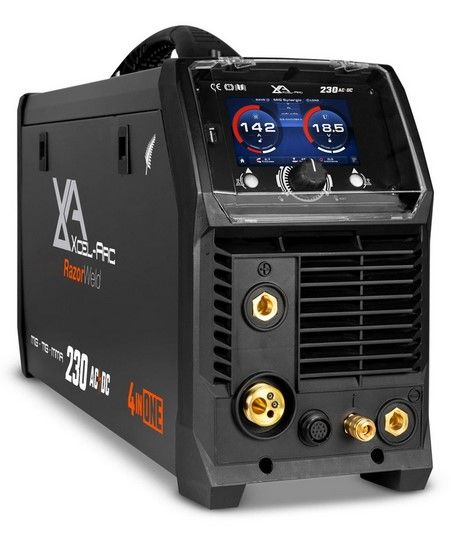

XcelArc MIG230 RazorWeld Multiprocess Inverter Welder

Stock Code:
XA-MIG230RZMTS-K
Price:
$2,930.00 Incl. GST
In Stock

Description

The brand new RAZORWELD MULTI 230 AC/DC 4-in-1 is here. As the latest and greatest addition to our RAZORWELD line, this machine can do any kind of welding you need it to. MIG, High-Frequency AC & DC TIG, as well as STICK, no matter what you’ve got planned, the RAZOR MULTI 230 AC/DC can do it.

100+ SYNERGIC PROGRAMS

JUST SELECT YOUR METAL, WIRE SIZE, AND GAS, AND YOU’RE GOOD TO GO

5” LCD SCREEN

THE LARGE SCREEN DISPLAY IS CLEAR, WITH AN EASY TO NAVIGATE INTERFACE

AC/DC High Frequency TIG

TIG weld aluminium without issues with AC. High-Frequency TIG (H/F TIG) gives you more control when starting or stopping the arc and reduces the risk of contaminating the tungsten or the weld.

DUAL PLUG COMPATIBILITY (10A & 15A)

Connect to any 10A or 15A outlet for even greater versatility. The machine comes plugged with a 15A plug, so to connect to a 10A outlet simply attach the supplied conversion lead to your machine and change your output mode on the machine. In 10A mode the output is limited to 200A, and the duty cycle is limited to 10% at 200A.

Power Factor Correction (PFC)

PFC gives you maximum electrical efficiency and automatically compensates for any voltage fluctuation.





MIG Smart-Set

Setting up for a weld has never been easier, just set your wire, gas, joint type and material thickness and you’re ready to weld!

Complete MIG Weld Cycle Control

Get complete control over your MIG welds with a full set of adjustable parameters. It comes with the standard settings like as pre- and post-gas flow, arc ignition speed, and burnback. Plus it also includes more advanced features, like Arc Start and Crater Fill, for full control over the beginning and end of your welds.

Geared Wire Drive

This machine features a geared roller drive unit, providing consistent and smooth wire feed, and it helps when using longer MIG torches.

TIG Smart-Set

The easiest way to set up for a TIG weld, simply set your filler material, joint type and material thickness and you’re good to go!

Mix AC/DC

Mixed AC/DC welding is the combination of TIG AC and TIG DC- in one weld. Mixed AC/DC gives you faster welding speeds, better penetration, a faster weld puddle on cold workpieces, and you can weld on thicker materials.



MACHINE SPECIFICATIONS

PRIMARY INPUT VOLTAGE 240V Single Phase

SUPPLY PLUG 15 AMP (15A to 10A Conversion Lead Included)

Ieff (A) 9.4 / 15

RATED OUTPUT 25A/15.3V-200A/24V (10A) 25A/15.3V-230A/25.5V (15A)

PROTECTION CLASS IP21

INSULATION CLASS H

MINIMUM GENERATOR (kVA) 8.5 (10A) / 10 (15A)

DINSE CONNECTOR 35/50

STANDARD AS/NZ60974-1

SUITABLE MATERIAL Mild Steel, Stainless Steel, Cast Iron, Silicon Bronze, Aluminium, Copper

WARRANTY (Years) 3



MIG SPECIFICATIONS

MIG WELDING CURRENT RANGE 25-200A (10A) / 25-230A (15A)

MIG DUTY CYCLE @ 40°C 10% @ 200A, 60% @ 81A, 100% @ 63A (10A) / 25% @ 230A, 60% @ 187A, 100% @ 145A (15A)

MIG WIRE SIZE RANGE 0.6-1.0mm

MIG WIRE SPOOL SIZE 100mm / 200mm

MIG WELDING THICKNESS RANGE 1-10mm

DRIVE ROLLER SIZE 30/22



TIG SPECIFICATIONS

TIG FUNCTION TYPE AC/DC High-Frequency

TIG WELDING CURRENT RANGE 10-200A

TIG DUTY CYCLE @ 40°C 25% @ 200A, 60% @ 130A, 100% @ 100A (10/15A)

TIG WELDING THICKNESS RANGE 1-8mm

STICK SPECIFICATIONS

STICK WELDING CURRENT RANGE 10-200A

STICK DUTY CYCLE @ 40°C 10% @ 200A, 60% @ 81A, 100% @ 63A (10A) / 25% @ 200A, 60% @ 130A, 100% @ 100A (15A)

STICK ELECTRODE RANGE 2.5-4.0mm

STICK WELDING THICKNESS RANGE 2-12mm

ARC FORCE 0-100%
