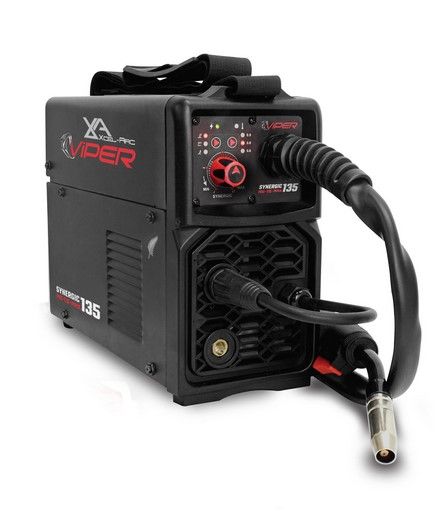

XCEL-ARC VIPER MIG135 MIG/MMA Inverter Welder Package

Stock Code:
XA-MIG135V-K
Price:
$593.00 Incl. GST
In Stock

Description

Welding has never been easier with the VIPER™ 135 SYNERGIC. Simply set your wire size, adjust the Synergic power knob and the VIPER™ does the rest! Running off a 10 AMP plug, this machine is perfect for small repairs and DIY welding projects.

The VIPER™ 135 SYNERGIC features MIG programs for 0.6mm, 0.8mm and 0.9mm wire. It can take Flux-Cored, Mild Steel and Stainless Steel MIG wires.

The built-in 10 AMP Plug makes this the perfect welder for your home workshop or out on the field. MIG, TIG or STICK, the VIPER™ 135 SYNERGIC does it all and you’ll be able to take it anywhere you need. Weighing just 5.2kg.





MACHINE SPECIFICATIONS

PRIMARY INPUT VOLTAGE: 230V Single Phase

SUPPLY PLUG: 10 AMP

Ieff (A): 8.4

RATED OUTPUT 40/16V-135A/21V

NO LOAD VOLTAGE (V) 68

PROTECTION CLASS: IP21S

INSULATION CLASS: H

POWER FACTOR: 0.68

MINIMUM GENERATOR (kVA): 8.0

DINSE CONNECTOR: 10/25

STANDARD: AS/NZ60974-1

SUITABLE MATERIAL

Mild Steel, Stainless Steel, Cast Iron, Silicon Bronze, Copper

WARRANTY (Years): 1





MIG SPECIFICATIONS

MIG WELDING CURRENT RANGE: 40-135A

MIG DUTY CYCLE @ 40°C: 15% @ 135A

MIG WIRE SIZE RANGE: 0.6-0.9mm

MIG WIRE SPOOL SIZE: 1kg

MIG WELDING THICKNESS RANGE: 1-6mm





TIG SPECIFICATIONS

TIG FUNCTION TYPE: DC Lift Arc

TIG WELDING CURRENT RANGE: 20-120A

TIG DUTY CYCLE @ 40°C

15% @ 120A

TIG WELDING THICKNESS RANGE: 1-6mm



STICK SPECIFICATIONS

STICK WELDING CURRENT RANGE: 20-120A

STICK DUTY CYCLE @ 40°C: 15% @ 120A

STICK ELECTRODE RANGE: 2.5-3.2mm

STICK WELDING THICKNESS RANGE: 3-6mm



SIZE & WEIGHT

DIMENSIONS (mm)

353x132x250mm

WEIGHT (kg): 5.2kg





MACHINE FEATURES

WIRE DRIVE: Standard

THERMAL OVERLOAD PROTECTION

Over Temperature Warning
