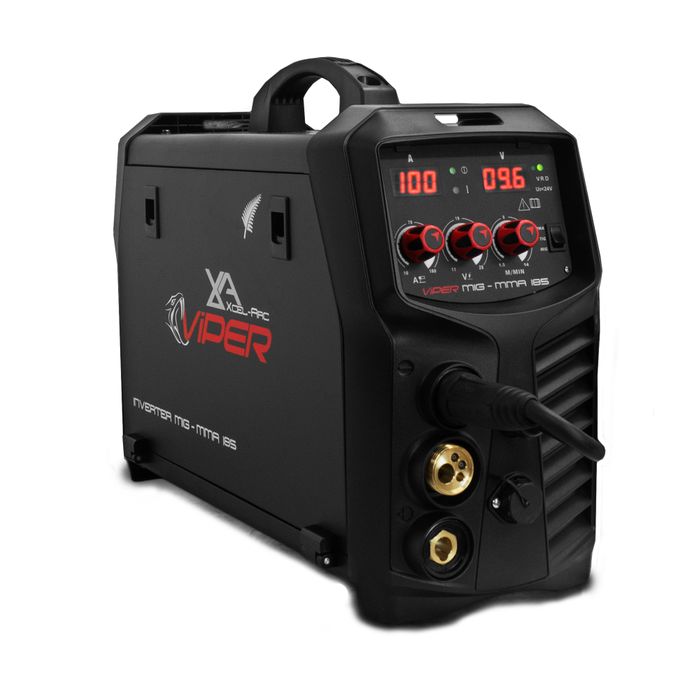

XCEL-ARC VIPER MIG185 MIG/MMA Inverter Welder Package

Description

Viper MIG185 MIG/TIG/MMA Inverter Welder Package Fitted with 10 Amp Domestic Plug, Digital Meters, Spool Gun Ready, Lift-Arc DC TIG

The VIPER™ 185 is the ultimate multi-process welder for the DIY enthusiast. MIG, TIG or STICK, the VIPER™ does it all, and it’s ready to go anywhere you have a standard 10-amp outlet. Get repairs done and see your projects come together in record time with the ability to change modes with the flick of a switch.

The VIPER™ 185 is the perfect solution for those looking for insane performance without needing to blow your budget on multiple welders.

MACHINE SPECIFICATIONS

PRIMARY INPUT VOLTAGE:  240V Single Phase

SUPPLY PLUG:  10 AMP

RATED INPUT POWER (kVA):  7.1

Ieff (A):  9.8

RATED OUTPUT:  30A/15.5V - 180A/23.0V

NO LOAD VOLTAGE (V):  62

PROTECTION CLASS:  IP21S

INSULATION CLASS:  F

POWER FACTOR:  0.7

MINIMUM GENERATOR (kVA):  10.0

DINSE CONNECTOR:  35/50

STANDARD:  AS/NZ60974-1

SUITABLE MATERIAL:  Mild Steel, Stainless Steel, Cast Iron, Silicon Bronze, Aluminum, Copper

MIG SPECIFICATIONS

MIG WELDING CURRENT RANGE:  30-180A

MIG DUTY CYCLE @ 40°C:  10% @ 180A

MIG WIRE SIZE RANGE:  0.6-0.9mm

MIG WIRE SPOOL SIZE:  1kg / 5kg

MIG WELDING THICKNESS RANGE:  1-10mm

DRIVE ROLLER SIZE:  30/22

TIG SPECIFICATIONS

TIG FUNCTION TYPE:  DC Lift Arc

TIG WELDING CURRENT RANGE:  10-160A

TIG DUTY CYCLE @ 40°C:  10% @ 160A

TIG WELDING THICKNESS RANGE:  1-6mm

STICK SPECIFICATIONS

STICK WELDING CURRENT RANGE:  10-160A

STICK DUTY CYCLE @ 40°C:  10% @ 160A

STICK ELECTRODE RANGE: 2.5-4.0mm

STICK WELDING THICKNESS RANGE:  2-10mm
