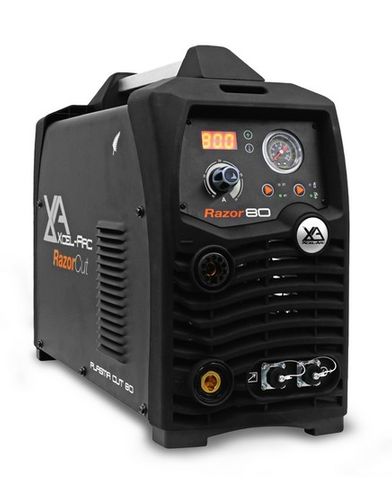

RazorCut-80 Inverter Plasma Cutter 415V Standard Package

Stock Code:
XA-CUT80RZ-K
Price:
$2,724.99 Incl. GST
Out of Stock
Unavailable for Online Purchase

Description

The RAZOR™ CUT 80 is designed for maximum performance, offering the highest level of cutting performance from Xcel-Arc’s range. Capable of clean cutting 30mm and severing 35mm, this machine is for the professional needing maximum power from a portable machine.







MACHINE SPECIFICATIONS

PRIMARY INPUT VOLTAGE: 415V Three Phase

SUPPLY PLUG: Three Phase (20 AMP Recommended)

RATED INPUT POWER (kVA): 15.0

Ieff (A): 12.6

NO LOAD VOLTAGE (V): 310

PROTECTION CLASS: IP21S

INSULATION CLASS: F

MINIMUM GENERATOR (kVA): 15.0

DINSE CONNECTOR: Euro

STANDARD: AS/NZ60974-1



SIZE & WEIGHT

DIMENSIONS (mm): 560x220x415mm

WEIGHT (kg): 16kg



MACHINE FEATURES

THERMAL OVERLOAD PROTECTION: Over Temperature Warning

PLASMA CUT SPECIFICATIONS

PLASMA CUT CURRENT RANGE: 20-80A

PLASMA CUT DUTY CYCLE @ 40°C: 40% @ 80A

MILD STEEL CUT THICKNESS: 30mm

MILD STEEL SEVERANCE THICKNESS: 35mm

ALUMINIUM CUT THICKNESS: 16mm

ALUMINIUM SEVERANCE THICKNESS: 20mm

STAINLESS STEEL CUT THICKNESS: 16mm

STAINLESS STEEL SEVERANCE THICKNESS: 20mm

AIR FLOW DRAW OFF (L/min): 189

AIR FLOW PRESSURE (Bar): 5.17 (75 psi)

PLASMA ARC START: Pilot Arc
