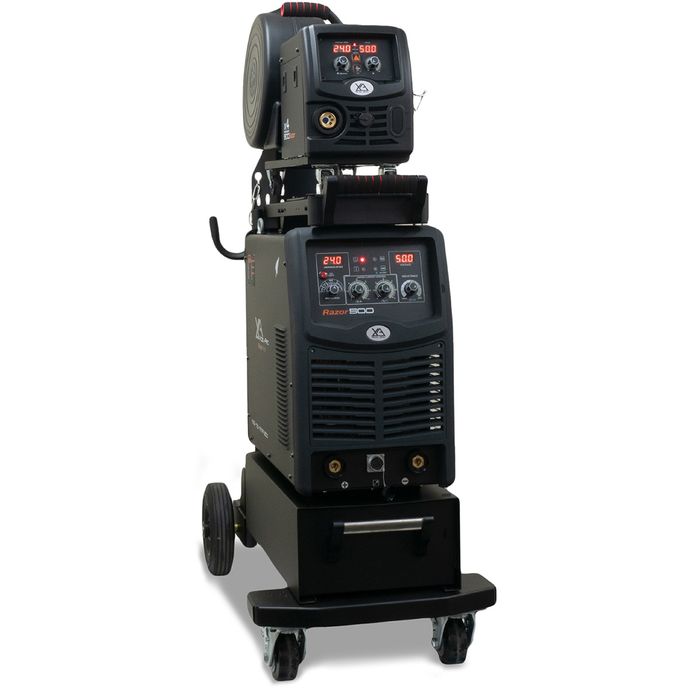

RazorWeld MIG500RZ SWF MTS Inverter Welder 415V Standard Kit

Description

The RAZORWELD™ 500 SWF is a powerful workshop machine with MIG, TIG and STICK welding functions. This machine features the added flexibility of a Separate Wire Feeder unit, allowing up to 10m of extra manoeuvrability in the workshop. Built with solid construction, this machine is designed to withstand the toughest conditions. The RAZORWELD™ 500 SWF is also Spool Gun and Push-Pull Gun ready, providing MIG welding capabilities across every spool size.

The RAZORWELD™ SWF series is designed for superior performance and manoeuvrability, offering the highest quality of welds from Xcel Arc’s range.

MACHINE SPECIFICATIONS

PRIMARY INPUT VOLTAGE: 415V Three-Phase

SUPPLY PLUG: Three Phase (32 AMP Recommended)

RATED INPUT POWER (kVA): 25.3

Ieff (A): 24.3

RATED OUTPUT: 50A/17V - 500A/39.0V

NO LOAD VOLTAGE (V): 85

PROTECTION CLASS: IP23

INSULATION CLASS: F

POWER FACTOR: 0.93

MINIMUM GENERATOR (kVA): 26.0

DINSE CONNECTOR: 35/50

STANDARD: AS/NZ60974-1

SUITABLE MATERIAL: Mild Steel, Stainless Steel, Cast Iron, Silicon Bronze, Aluminium, Copper

MIG SPECIFICATIONS

MIG WELDING CURRENT RANGE: 50-500A

MIG DUTY CYCLE @ 40°C: 60% @ 500A

MIG WIRE SIZE RANGE: 0.6-1.6mm

MIG WIRE SPOOL SIZE: 5kg / 15kg

MIG WELDING THICKNESS RANGE: 1-30mm

DRIVE ROLLER SIZE: 30/10 (x2)

TIG SPECIFICATIONS

TIG FUNCTION TYPE: DC Lift Arc

TIG WELDING CURRENT RANGE: 20-500A

TIG DUTY CYCLE @ 40°C: 60% @ 500A

TIG WELDING THICKNESS RANGE: 2-10mm

STICK SPECIFICATIONS

STICK WELDING CURRENT RANGE: 20-500A

STICK DUTY CYCLE @ 40°C: 60% @ 500A

STICK ELECTRODE RANGE: 2.5-6.0mm

STICK WELDING THICKNESS RANGE: 2-20mm
