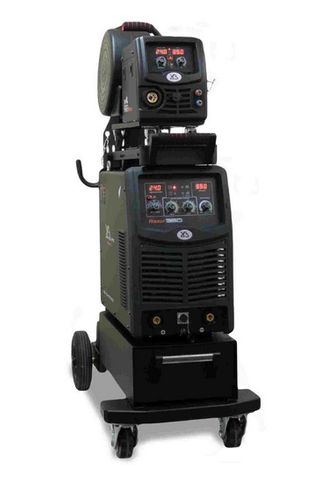

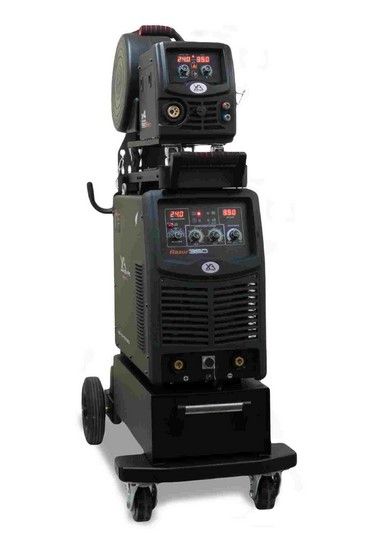

RazorWeld MIG350RZ SWF MTS Inverter Welder 415V Standard Kit

Description

The RAZORWELD™ 350RZ SWF is a powerful workshop machine with MIG, TIG and STICK welding functions. This machine features the added flexibility of a Separate Wire Feeder unit, allowing up to 10m of extra maneuverability in the workshop. Built with a solid construction, this machine is designed to withstand the toughest conditions. The RAZORWELD™ 350RZ SWF is also Spool Gun and Push-Pull Gun ready, providing MIG welding capabilities across every spool size.

The RAZORWELD™ SWF series is designed for superior performance and maneuverability, offering the highest quality of welds from XCEL-ARC’s range.

MACHINE SPECIFICATIONS

PRIMARY INPUT VOLTAGE: 415V Three Phase

SUPPLY PLUG: Three Phase (32 AMP Recommended)

RATED INPUT POWER (kVA): 12.8

Ieff (A): 26.0

RATED OUTPUT: MIG- 50A/16.5V - 350A/39.0V | MMA- 20A/20.8V - 350A/40.0V

NO LOAD VOLTAGE (V): 65

PROTECTION CLASS: IP21S

INSULATION CLASS: F

POWER FACTOR: 0.93

MINIMUM GENERATOR (kVA): 20.0

DINSE CONNECTOR: 35/50

STANDARD: AS/NZ60974-1

SUITABLE MATERIAL: Mild Steel, Stainless Steel, Cast Iron, Silicon Bronze, Aluminum, Copper

MIG SPECIFICATIONS

MIG WELDING CURRENT RANGE: 50-350A

MIG DUTY CYCLE @ 40°C: 60% @ 350A

MIG WIRE SIZE RANGE: 0.8-1.6mm

MIG WIRE SPOOL SIZE: 5kg / 15kg

MIG WELDING THICKNESS RANGE: 1-16mm

DRIVE ROLLER SIZE: 30/22 (x2)

TIG SPECIFICATIONS

TIG FUNCTION TYPE: DC Lift Arc

TIG WELDING CURRENT RANGE: 20-350A

TIG DUTY CYCLE @ 40°C: 60% @ 350A

TIG WELDING THICKNESS RANGE: 1-10mm

STICK SPECIFICATIONS

STICK WELDING CURRENT RANGE: 20-350A

STICK DUTY CYCLE @ 40°C: 60% @ 350A

STICK ELECTRODE RANGE: 2.5-6.0mm

STICK WELDING THICKNESS RANGE: 2-16mm
