MIG250CRZ Compact MIG/TIG/MMA Inverter Welder Package - RazorWeld

Description

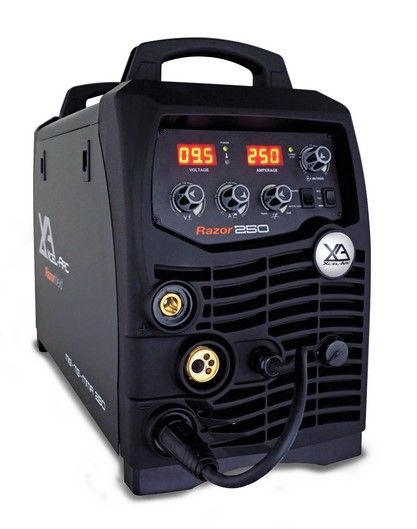

RazorWeld Compact MIG/TIG/STICK Welder Package 250A - 230v Single Phase c/w 4mtr Mig Torch, Arc Set, Argon Regulator

Looking for portability and performance? The RAZORWELD™ 250 is the perfect match for welders needing powerful performance both in the workshop and on their worksite. With a spool gun connection – and a geared wire drive – the RAZORWELD™ 250 is a must-have for the serious welder.

MACHINE SPECIFICATIONS

PRIMARY INPUT VOLTAGE: 240V Single Phase

SUPPLY PLUG: Single Phase (32 AMP Recommended) or 15 AMP

RATED INPUT POWER (kVA): 11.0

Ieff (A): 28.0

RATED OUTPUT: 30A/15.5V - 250A/26.5V

NO LOAD VOLTAGE (V): 54

PROTECTION CLASS: IP21S

INSULATION CLASS: F

POWER FACTOR: 0.72

MINIMUM GENERATOR (kVA): 13.0

DINSE CONNECTOR: 35/50

STANDARD: AS/NZ60974-1

SUITABLE MATERIAL: Mild Steel, Stainless Steel, Cast Iron, Silicon Bronze, Aluminium, Copper

MIG SPECIFICATIONS

MIG WELDING CURRENT RANGE: 30-250A

MIG DUTY CYCLE @ 40°C: 30% @ 250A

MIG WIRE SIZE RANGE: 0.6-1.2mm

MIG WIRE SPOOL SIZE: 5kg / 15kg

MIG WELDING THICKNESS RANGE: 1-12mm

DRIVE ROLLER SIZE: 30/22

TIG SPECIFICATIONS

TIG FUNCTION TYPE: DC Lift Arc

TIG WELDING CURRENT RANGE: 10-250A

TIG DUTY CYCLE @ 40°C: 30% @ 250A

TIG WELDING THICKNESS RANGE: 1-6mm

STICK SPECIFICATIONS

STICK WELDING CURRENT RANGE: 10-250A

STICK DUTY CYCLE @ 40°C: 30% @ 250A

STICK ELECTRODE RANGE: 2.5-4.0mm

STICK WELDING THICKNESS RANGE: 2-12mm
