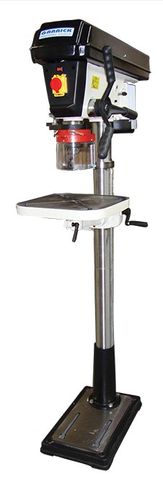

Pedestal Industrial Heavy Duty Drill Press 750W motor, 16mm Chuck, MT3 - Garrick

Description

FEATURES

- Square table for larger work area, with T slots for solid clamping
- Table tilts and rotates
- Solid one piece Cast Iron operating handle
- Safety cut-out switch on belt cover
- Safety Guard with flip up cover over chuck
- Emergency stop switch
- Heavy-duty precision depth stop
- Quick action belt tensioning
- Rack and pinion table height adjustment
- Precision machined column and quill
- Work light under head (bulb not included)
- Powerful 240V Aluminium TEFC motors
- A section Vee belts and pulleys

SPECIFICATIONS
Type: Pedestal
Motor: 750W
Max Drilling Capacity: 25mm
Chuck Size: 3 - 16mm
Swing: 432mm
Spindle Taper: MT3
Spindle Travel: 80mm
No. of Speeds: 12
Speed Range: 120 - 2580rpm
Overall Height: 1650mm
Column Diameter: 80mm
Quill Diameter: 52
Table Dimensions: 345 x 345mm
Weight: 117kg
